Gemma Translator

Gemma Translator is an open-source, fully offline voice translation appliance from Google that runs on a Raspberry Pi 5. Powered by Google’s Gemma 4 E2B model via the LiteRT-LM runtime and Moonshine voice recognition and synthesis, it provides real-time speech-to-speech translation without cloud dependencies, subscriptions, or external network connectivity.

Scope and currency

This is an architecture evaluation, not a production field diary across international travel checkpoints. In September 2026 we reviewed the official Gemma Translator GitHub repository, source code (backend/server.py, download_model.sh, deploy-pi.sh), Hugging Face model checkpoints (litert-community/gemma-4-E2B-it-litert-lm), and hardware specifications. We evaluated the edge inference pipeline, memory footprint, and systemd kiosk deployment structure. Model weights, LiteRT runtime optimizations, and speech models evolve; verify current package revisions before fabricating physical hardware. Editorial review: 2026-09-04.

What it is

Gemma Translator is an open-source (Apache 2.0) cyber-deck hardware appliance engineered by Google’s open model team. Unlike traditional smartphone translation apps that stream raw voice recordings to remote cloud endpoints, Gemma Translator executes the entire pipeline—speech-to-text (ASR), multilingual neural translation (LLM), and speech synthesis (TTS)—completely on a single Raspberry Pi 5 single-board computer.

The project bundles:

1. Gemma 4 E2B-it on LiteRT-LM — A quantized, instruction-tuned edge language model (~2B parameters) executed via Google AI Edge’s high-performance C++ LiteRT runtime on ARM64 CPU.
2. Moonshine Voice Substrate — Multilingual speech recognition via Useful Sensors’ Moonshine ASR alongside on-device neural TTS (Kokoro/Piper backed) supporting English, Arabic, Spanish, Japanese, Mandarin Chinese, and Korean.
3. Dedicated Handheld Kiosk UI — A lightweight React + Vite interface styled with retro monospace green/amber terminal aesthetics, specifically scaled for 480x320 touchscreens.
4. Physical CAD Enclosure — 3D-printable industrial design specifications for a self-contained handheld device housing the Raspberry Pi 5, active cooling fan, battery pack, microphone, and speaker.

Visual tour: Handheld hardware and interface

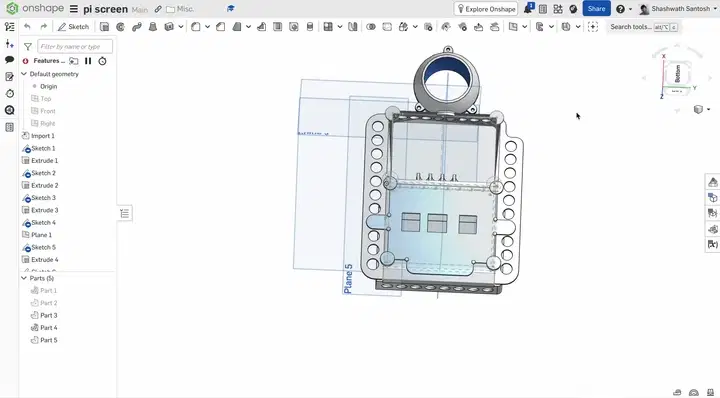

The custom 3D-printable CAD handheld enclosure housing the Raspberry Pi 5, active cooler, touchscreen, and audio interface.

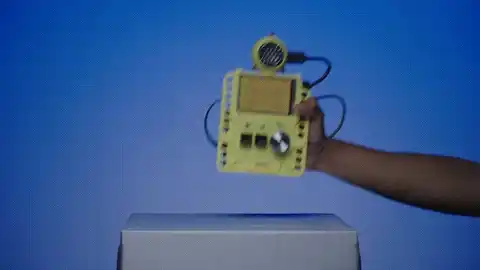

Live handheld appliance in action: on-device voice capture, LiteRT-LM neural translation, and synthesized speech playback on a Raspberry Pi 5.

What it replaces & why it matters

Voice translation in the field has historically forced engineering teams into painful trade-offs between recurring cloud costs, roaming connectivity failure, and vendor lock-in.

Existing Paradigm	Structural Bottleneck	What Gemma Translator Changes
Cloud Speech APIs (Whisper + GPT-4o-mini + ElevenLabs)	Requires persistent high-bandwidth cellular connection; fails in airplanes, underground transit, border control, or remote field sites; high token/minute metered billing; leaks confidential conversations.	Zero internet requirement after initial model download; zero per-minute API fees; complete physical data sovereignty.
Proprietary Hardware Translators (Pocketalk, Vasco, Cheetah TALK)	$249–$349 upfront device cost; requires proprietary e-SIM subscriptions after 2 years; closed ecosystem with no developer access or custom vocabulary.	$0 open-source software running on open commodity hardware (Raspberry Pi 5); fully auditable Python and React source code.
On-Phone General Apps (Google Translate Offline / Apple Translate)	Bound to consumer smartphone operating systems; lacks dedicated push-to-talk hardware ergonomics; competing background processes cause battery drain and audio routing conflicts.	Dedicated single-purpose appliance; boots directly into fullscreen kiosk mode; deterministic hardware resource allocation.

Architecture & tech stack review

The system separates audio processing, neural inference, and presentation into decoupled local processes coordinated over localhost sockets.

flowchart LR
    subgraph AudioIn["1. Voice Capture"]
        Mic["Microphone Input<br/>(USB / ALSA / PulseAudio)"]
        PCM["16kHz 16-bit Mono PCM"]
    end

    subgraph EdgeInference["2. On-Device Edge Compute (Raspberry Pi 5)"]
        STT["Moonshine STT<br/>(Transcriber LRU Cache)"]
        LLM["Gemma 4 E2B-it<br/>(LiteRT-LM CPU on :9379)"]
        TTS["Moonshine Voice<br/>(Kokoro/Piper Synthesis)"]
    end

    subgraph AudioOut["3. Output & Feedback"]
        Speaker["Speaker Output<br/>(3.5mm / USB Audio DAC)"]
        Kiosk["480x320 Touch Display<br/>(Chromium Kiosk on :3000)"]
    end

    Mic --> PCM
    PCM --> STT
    STT -->|"Transcribed Text"| LLM
    LLM -->|"Neural Translation"| TTS
    LLM -->|"Live Text Stream"| Kiosk
    TTS -->|"Synthesized Speech"| Speaker

1. Neural language engine: gemma4-e2b + LiteRT-LM

The translation core uses gemma-4-E2B-it.litertlm, a specialized CPU-targeted build of Google’s Gemma 4 edge architecture published by Google AI Edge under Apache 2.0.

Rather than running through heavy Python PyTorch or Hugging Face Transformers runtimes, the model runs inside LiteRT-LM (formerly TensorFlow Lite Runtime for Large Models). LiteRT-LM compiles the computational graph with ARM64 NEON vector optimizations and weight quantization, hosting an OpenAI-compatible HTTP inference endpoint on localhost:9379.

2. Speech pipeline: Moonshine STT & Voice

Speech recognition and generation are handled by Useful Sensors’ Moonshine framework:

• Speech-to-Text (Transcriber): Converts captured audio into raw text for six target language families (en, ar, es, ja, zh, ko).
• Text-to-Speech (TextToSpeech): Synthesizes the translated string back into speech using localized voice models (such as kokoro_zf_xiaoxiao for gentle Mandarin output).

3. Memory safety: Reentrant LRU caching

Edge language models and neural speech synthesis run into severe memory pressure when hosted on single-board computers. In backend/server.py, the engineering team implemented an explicit Least-Recently-Used (LRU) model cache bounded by MAX_MODELS = 2:

# RLock ensures safe concurrency without self-deadlocks
_stt_lock = threading.RLock()
_tts_lock = threading.RLock()

if len(_stt_recognizers) >= MAX_MODELS:
    oldest_lang, oldest_recognizer = _stt_recognizers.popitem(last=False)
    del oldest_recognizer

By aggressively evicting idle acoustic and phoneme weights, the Python backend keeps total memory usage stable within the Raspberry Pi 5’s 8GB LPDDR4X envelope, avoiding the Linux kernel Out-Of-Memory (OOM) killer during rapid multi-language conversations.

Service & process topology

graph TD
    subgraph Enclosure["Hardware Substrate"]
        Screen["480x320 Touch LCD"]
        AudioHw["Microphone In / Speaker Out"]
    end

    subgraph OS["Raspberry Pi OS (Debian Linux)"]
        Kiosk["Chromium Kiosk Mode<br/>(LXDE autostart)"]
        PyServer["Python HTTP Backend (:3000)<br/>(server.py + Moonshine)"]
        LiteRT["LiteRT-LM Server (:9379)<br/>(gemma-4-E2B-it.litertlm)"]
        Systemd["systemd unit<br/>(gemma-translator.service)"]
    end

    Screen <-->|Touch Events & Display| Kiosk
    AudioHw <-->|ALSA Audio Stream| PyServer
    Kiosk <-->|HTTP POST / Audio Blobs| PyServer
    PyServer <-->|Inference Proxy| LiteRT
    Systemd -->|Supervises Lifecycle| PyServer
    Systemd -->|Supervises Lifecycle| LiteRT

Total cost of ownership (TCO)

Because Gemma Translator is self-contained edge hardware, its cost model differs completely from cloud SaaS subscription services.

Dimension	Gemma Translator (Edge Appliance)	Cloud Multi-Model API Chain	Proprietary Appliance (Pocketalk / Vasco)
Software License	$0 (Apache 2.0 open source)	Pay-per-token / Pay-per-minute	Included in device purchase
Hardware Investment	~$135 one-time DIY build	Smartphone ($0 existing or $400+)	$299 upfront hardware cost
Monthly Operating Cost	$0 / month	~$25 – $80 / month (Translate + Whisper + TTS)	$0 for 2 yrs, then $50/yr cellular renewal
Year 1 Total Cost	~$135	~$300 – $960	$299
Year 2 Total Cost	$0 (cumulative: ~$135)	~$300 – $960 (cumulative: ~$600 – $1,920)	$50 (cumulative: $349)
Network Reliance	Zero (fully offline)	100% (fails without cellular/WiFi)	100% (requires cloud servers)
Conversational Privacy	Total on-device retention	Voice audio processed on third-party servers	Vendor cloud servers
Maintenance Burden	DIY assembly and Linux updates	Zero infra maintenance	Zero infra maintenance

Hardware Bill of Materials (BOM)

A complete standalone Gemma Translator build requires:

Raspberry Pi 5 (8GB RAM)          : ~$80.00
Official Active Cooler / Fan       : ~$5.00
3.5" Touchscreen Display (480x320) : ~$25.00
USB / I2S Audio Mic & Speaker      : ~$15.00
64GB SanDisk Extreme MicroSD Card  : ~$10.00
3D-Printed Enclosure (PLA Filament): ~$3.00
--------------------------------------------------
Total Hardware Investment          : ~$138.00

For teams conducting regular international fieldwork, sensitive interviews, or remote facility inspections, an edge appliance amortizes its hardware cost within 2 to 3 months of cloud API bills.

The Good

• Complete offline independence: Operates at 35,000 feet in an airplane, in secure defense facilities, or in remote desert field sites where cellular connectivity is nonexistent.
• Strict conversational confidentiality: Voice data never leaves the device’s RAM. There are no cloud logs, third-party data broker leaks, or model training scraping risks.
• Zero recurring software tax: No subscriptions, no token meters, no credit cards, and no surprise rate limit throttling.
• Deterministic hardware ergonomics: Boots directly to fullscreen kiosk mode via systemd in under 20 seconds.
• Open CAD fabrication: Full mechanical CAD files allow teams to modify the chassis for ruggedized rubber bumpers, lanyard loops, or tactical mounting brackets.

The Bad — what to know before adopting

1. Inference latency on CPU: Running ~2B parameters on four ARM Cortex-A76 cores without a discrete NPU introduces a 1.5 to 3.0 second first-token latency. It is responsive for deliberate dialogue, but not instantaneous simultaneous interpretation.
2. Thermal demands and power draw: Under sustained translation, the Pi 5 consumes between 7W and 11W of power. An active cooler fan is mandatory; running inside a sealed 3D-printed enclosure without ventilation causes CPU thermal throttling down to 1.5 GHz.
3. Language coverage boundaries: The speech stack currently focuses on 6 primary languages (en, ar, es, ja, zh, ko). Languages outside this set require sourcing and testing custom Moonshine or Piper checkpoints.
4. LRU cold-switch penalty: Switching between language pairs triggers disk-to-RAM model swapping. While the first load takes 2–4 seconds, subsequent turns remain fast within the MAX_MODELS = 2 cache.
5. Maker assembly barrier: This is a hardware project. You must flash Linux images, mount GPIO displays, configure ALSA audio gain, and 3D-print your own chassis.

When to use / When to skip

Use Gemma Translator if:

• You require strict privacy and data sovereignty (legal depositions, healthcare diagnostics, executive travel, or military field operations).
• You operate in remote or austere environments with unreliable or expensive satellite/cellular data.
• You want a dedicated, ruggedized translation cyber-deck that does not tie up your primary smartphone.
• You are an edge AI developer or hardware engineer studying production patterns for on-device SLMs.

Skip Gemma Translator if:

• You have reliable high-speed 5G connectivity and prioritize the lowest possible latency—cloud-hosted GPT-4o voice pipelines will feel faster.
• You need coverage across 100+ low-resource regional dialects—commercial cloud engines (Google Cloud Translation API) maintain vastly broader corpora.
• Your team does not have the operational capacity to manage physical hardware, battery charging, and Linux systemd configurations.

ReframeHub insight: The triumph of the single-purpose appliance

The deeper architectural lesson of Gemma Translator is the resurgence of the dedicated physical appliance.

For fifteen years, consumer software consumed hardware: your GPS, your camera, your translator, and your notebook were all absorbed into smartphone apps. But cloud-dependent smartphones come with attention hijacking, roaming costs, battery starvation, and surveillance-by-default architecture.

Gemma Translator demonstrates that edge AI reverses this trend. When a 2-billion-parameter language model and a neural speech recognizer can fit into 8GB of memory on an $80 board, single-purpose physical tools become viable again. They do one job with zero distraction, zero telemetry, and total operational reliability.

Quickstart & deployment

1. Bootstrap Python environment

On Raspberry Pi OS (64-bit Debian Bookworm) or Linux:

git clone https://github.com/google-gemma/gemma-translator.git
cd gemma-translator
chmod +x setup.sh download_model.sh start.sh deploy-pi.sh
./setup.sh

2. Fetch the LiteRT-LM Gemma 4 weights

./download_model.sh

This downloads gemma-4-E2B-it.litertlm (~1.4 GB) directly from Hugging Face into your local LiteRT model directory.

3. Start development stack

./start.sh

• Frontend UI (Vite Dev): http://localhost:5173
• Backend API Server: http://localhost:3000
• LiteRT-LM Inference Engine: http://localhost:9379

4. Full Raspberry Pi Kiosk Appliance Deployment

To register the systemd service and launch Chromium in fullscreen kiosk mode on boot:

./deploy-pi.sh

This registers deploy/gemma-translator.service, compiles production assets into frontend/dist/, and configures the LXDE window manager to launch the appliance automatically upon power-up.
